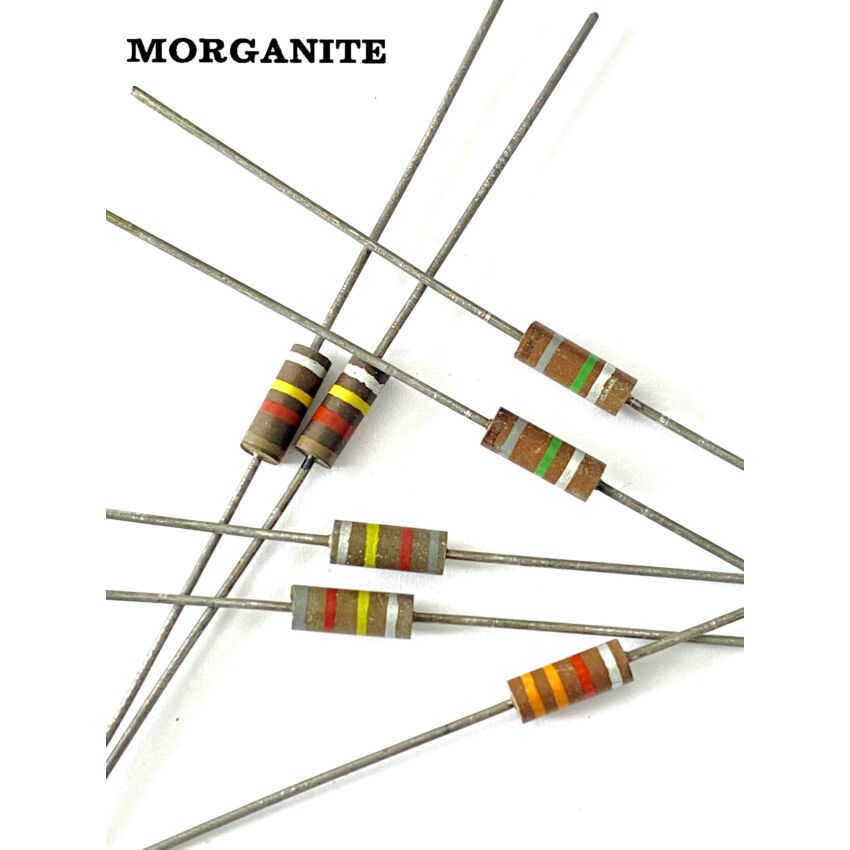

Morganite Carbon composite resistor (Type S) 0.5W 10%

The Morganite Carbon Composite Resistor (Type S) 0.5W 10% is a carbon-composite resistor that dates back to the mid-20th century, when carbon-composite technology was widely adopted for its durability and high energy absorption capabilities. These resistors became popular in the 1950s and 1960s, particularly in military, industrial, and early consumer electronics, where stability under high pulse loads was essential.

This 0.5W, 10% tolerance resistor is designed to limit electrical current, helping to manage voltage drops and protect sensitive circuit components. Its carbon-composite construction allows it to handle short-duration power surges better than many modern film resistors, making it suitable for applications where transient suppression is important.

Morganite, a well-regarded manufacturer in the resistor industry, has supplied components for various legacy devices, including vintage radio equipment, guitar amplifiers, and power supply circuits. Carbon-composite resistors like this one were commonly found in classic Fender and Marshall amplifiers, where their ability to handle high-energy pulses contributed to the signature “warm” tonal characteristics prized by musicians.

For hobbyists restoring vintage electronics, one key tip is to carefully check for drift in resistance values over time. Carbon-composite resistors tend to absorb moisture, which can alter their resistance. Using a multimeter before installation ensures your circuit functions as intended.
